Integrated Weighing Packaging Line
Shanghai Tandy Machinery Manufacturing Co., Ltd. is one of the most professional manufacturers and suppliers of integrated weighing packaging line in China. If you're going to buy advanced integrated weighing packaging line made in China, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
The integrated weighing packaging production line centers on the automatic screw filler for powders and granules. Servo controlled auger realizes stable quantitative feeding, matched with online weighing modules for real-time weight correction to narrow filling deviation sharply. The whole workflow covers automatic feeding, screw filling, weighing inspection, sealing and finished product output without manual intervention. Contact parts adopt food-grade 304 stainless steel with fully enclosed dustproof structure to reduce material waste. Equipped with PLC touchscreen control, parameters can be modified quickly for different materials like seasoning, chemical powder and grain particles, greatly cutting labor cost and boosting packaging consistency for mass production.
Technical parameters
| Volumetric way | Auger filler |
| Filling weight scope | 10-5000g |
| Packaging speed/min | 5-15pcs |
| Packaging accuracy | 100g-1000g ≤ ±2%; >1000g ≤±0.5% |
| Voltage | 3P AC208-415V 50/60Hz or as per requirement |
| Power | 1.40kw |
| Air Supply | 6kg/m2 , 0.15m3/min |
| Overall size | 1130*980*2960mm |
| Volume of hopper | 50L |
Product features
Precision filling control
Adopts under tray weight sensors to support dual-speed fast and slow filling based on preset weight values, effectively minimizing filling errors and improving packaging accuracy.
Stable servo feeding
The auger feeder is controlled by a full servo motor and drive system, ensuring stable continuous operation and precise material metering.
Intelligent operation
Equipped with PLC control and touch screen panel, supporting intuitive parameter setting, real-time monitoring and effortless operation.
High sensitivity weighing
Fast-response weighing system enables real-time weight detection and guarantees consistent high precision filling performance.
Dual Working Modes
Supports quantitative mode for high-efficiency production and online weighing mode for ultra precision filling to fit diverse production needs.
Hygienic & easy maintenance
Full stainless steel body with integrated combined hopper, easy to disassemble and clean; optional pneumatic bag-clamp and can-hold accessories for bag and can filling respectively.
Working principle
The weighing based filling device consists of three core parts: feeding unit, weight detection unit and hopper discharge unit. The feeding unit delivers materials to the weighing chamber and stops automatically when reaching the preset weight. The discharge unit then opens the hopper to unload materials, completing the whole weighing and filling process.
Material feeding unit
Common feeding types include electromagnetic vibration, screw, conveyor belt and gravity pipeline. To ensure high precision and fast metering, the unit requires stable controllability and automatic feeding speed adjustment is preferred to optimize filling performance.
Weight detection unit
As the core component of the filling machine, this unit monitors real-time material weight and feeds back data. Its stability and accuracy directly decide the overall filling precision of the equipment.
Weighing Hopper & discharge control unit
The weighing hopper and discharge opening mechanism are generally integrated. This compact structure stabilizes discharging action, simplifies equipment configuration and reduces operational failures.
Product overview
Applicable industries:
Suitable for food, cosmetic, agricultural, chemical and lithium battery industrial production scenarios with strong versatility.
Production origin:
Produced and processed in Shanghai, China with standardized production and strict quality control.
Price policy:
Flexible and cost effective pricing for all orders. Quotations are negotiable based on order and custom demands.
Main structural materials:
Adopts industrial grade 304/316/316L stainless steel. Custom material options are available.
Power supply adaptation:
Customizable power parameters to match local voltage and standards of different countries.
Export packaging standard:
Adopts standard export packaging with wooden cases or pallets for safe long distance transportation.
Market coverage:
Global business covers Asia, the Middle East, Europe, Americas, Oceania and other overseas regions.
After sales warranty:
All products come with a 12-month official quality warranty and professional after-sales support.
Our advantages
Streamlined direct operation
The manufacturer direct sales model simplifies transaction links, optimizes overall cost performance and enables clear quality source tracing for every product.
Holistic industrial procurement
Own a complete industrial product system to deliver full-coverage one-stop procurement services for diverse industrial sectors.
Professional personalized service
Modify product designs and technical indicators in accordance with clients' unique business and operational requirements.
High standard quality output
Rigorous full-process production testing and international qualification certifications maintain stable high-end product quality.
Enhanced global influence
Continuous R&D investment and service upgrading steadily improve global market influence and core competitive strengths.
Full-lifecycle partner support
Practice sincere business operation and customer-oriented standards, providing timely problem solving and full cycle services for global partners.

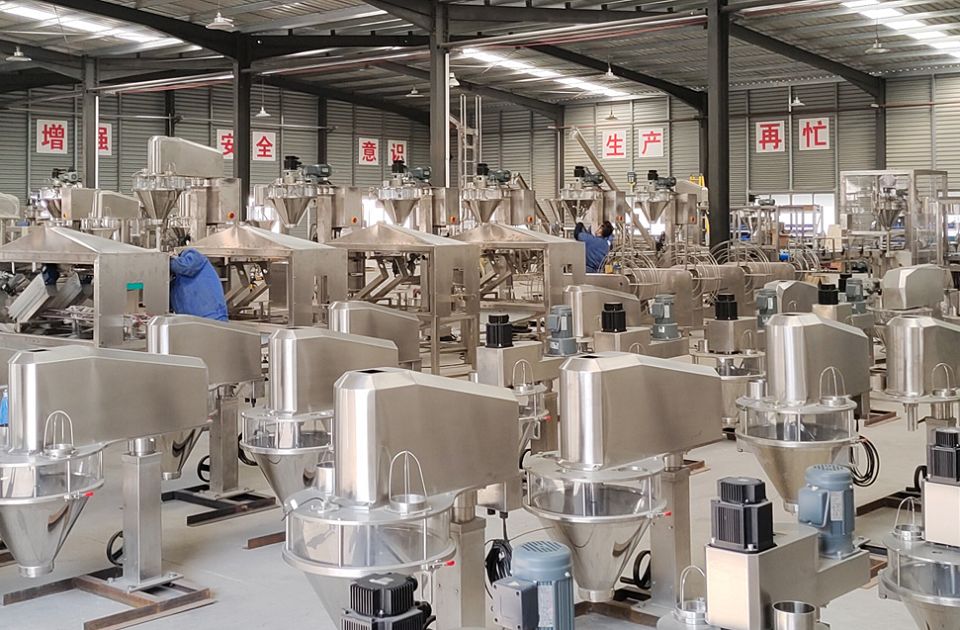

Standard production steps
Raw material preparation
Source high-grade stainless steel and classify materials to lay a foundation for follow-up fabrication.
01
Pre-production auditing
Inspect material parameters, surface quality and eligibility, and screen out unqualified raw materials.
02
Laser forming
Utilize advanced laser cutting machines to process materials into target sizes and contours.
03
Precision machining
Finish part welding, polishing and confirm machining precision, surface smoothness repeatedly.
04
Product assembly
Integrate all processed components in accordance with design blueprints for rational structural layout.
05
Post-production verification
Implement full-scale dual inspection of assembled products to meet standard requirements.
06
Operational testing
Simulate actual working conditions with raw materials to test equipment functionality and stability.
07
Finishing & packaging
Cleaning product residues completely and use shockproof and protective packaging materials.
08
Services list
- International market experience:
In-depth global OEM service experience helps us accurately meet international market standards.
- Diversified customization service:
We offer one-stop personalized product design and exclusive project customization for diverse demands.
- Full-process technical support:
Continuous technical guidance is available for product assembly, installation and debugging work.
- Efficient delivery cycle:
Abundant product categories and streamlined production management greatly shorten delivery time.
- High-standard production:
Cutting-edge manufacturing equipment and mature processes guarantee premium product quality.
- Premium cost-performance:
Competitive factory-direct prices are matched with intimate all-round customer services.
- Rigorous quality control:
Professional testing apparatus implements 100% inspection of key product components.
- Dedicated after-sales team:
Professional after-sales staff provide fast and effective problem-solving support.
Industry certifications
Granted the official National High-tech Enterprise certificate, Shanghai-based enterprise specializes in powder processing and material packaging solutions. Full-range ISO system authentication has been fully accomplished in our workshop, while all outbound finished products are matched with legal CE certification documents. Standardized operation guidelines and multi-level sampling inspection procedures run through every production link. Up to now, we have steadily delivered qualified industrial products to widespread overseas partners covering multiple global continents.
Company details
We are a professional manufacturer dedicated to food-grade stainless steel mechanical equipment that strictly complies with global food safety industrial standards. Our product portfolio includes complete processing machines, automatic packaging units, stable conveying systems and reliable material unloading devices for food production lines. Equipped with independent research & development teams and a dedicated manufacturing factory situated in a well-connected transportation hub, we keep upgrading facilities to achieve stable annual growth in overall production capacity. We sincerely welcome all new clients and long-term cooperative partners across the globe to visit our workshop, conduct technical communication and negotiate feasible win-win cooperation schemes together.
Fair information
Tandy Machinery actively participates in top-tier industrial expos including Propak, FIC, SWOP etc. as a core global development strategy. Our professional sales team holds in-depth communications with overseas distributors onsite, showcasing full sets of processing equipment alongside customized technical support solutions. We collect first-hand market demands and industry feedback from worldwide visitors during the events. Such offline face to face interactions effectively lift international brand influence, lock in potential cooperative intentions with overseas partners and steadily push forward the layout and growth of our cross-border business layout.
Firm cultures
Steady yearly revenue uplift supports our food machinery firm to carry out rational workforce scaling. Besides tapping new overseas markets and optimizing global business deployment, internal talent development and team bonding are core managerial priorities. We launch staged, specialized training sessions to upgrade staff professional know-how. The company advocates mutual progress among all members, strengthening each employee's competitive edge while aligning personal career goals with the enterprise's long-term healthy growth.
Delivery solutions
There are some transportation ways for choice as following:
Via Train or land:
Advantage: Faster, within 10- 15 days for delivery.
Inferiority: Freight just a little expensive.
Via flight:
Advantage: Fastest, takes only about 3- 7 days.
Inferiority: Just charges higher.
Via Ocean:
Advantage: Freight is real economic. Suitable for large logistic.
Inferiority: Slow and has to take from destination port.
Customer center
Q: Do you have any qualification certification for stainless steel ?
A: SUS304/316 stainless steel & CE certified for food contact.
Q: Is it available for custom design?
A: Yes, customized capacity, dimension and configuration.
Q: Equipment is easy to clean?
A: Quick disassembly, smooth surface, no sanitary dead corners.
Q: How about warranty period?
A: 12-month warranty for key parts, lifelong technical service.
Q: How about overseas installation?
A: Engineer on-site installation & training optional.
Q: What is the trade terms?
A: EXW, FOB, CFR, CIF acceptable with flexible payment.
