Side Unloading Vibratory Feeder
Shanghai Tandy Machinery Manufacturing Co., Ltd. is one of the most professional manufacturers and suppliers of side unloading vibratory feeder in China. If you're going to buy advanced side unloading vibratory feeder made in China, welcome to get quotation from our factory. All customized products are with high quality and competitive price.

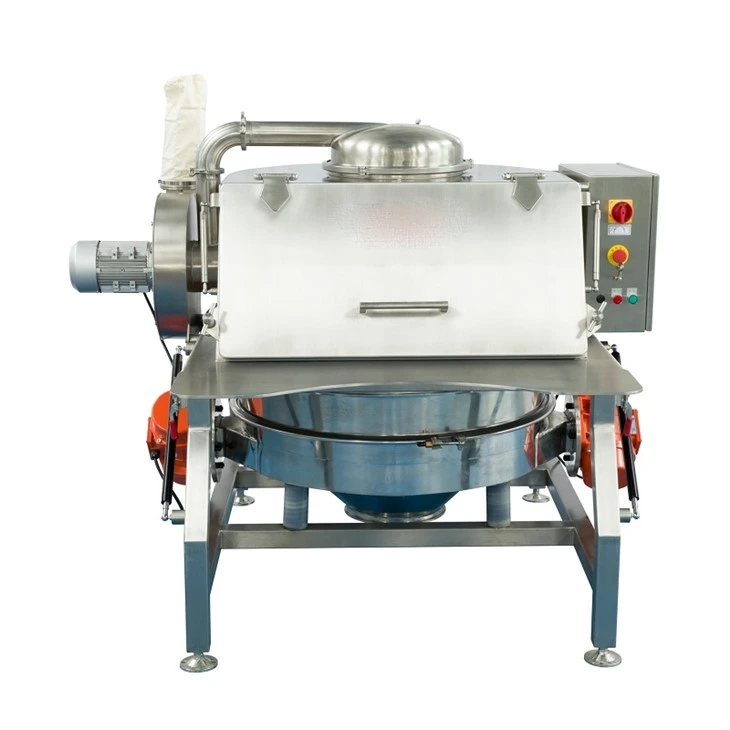

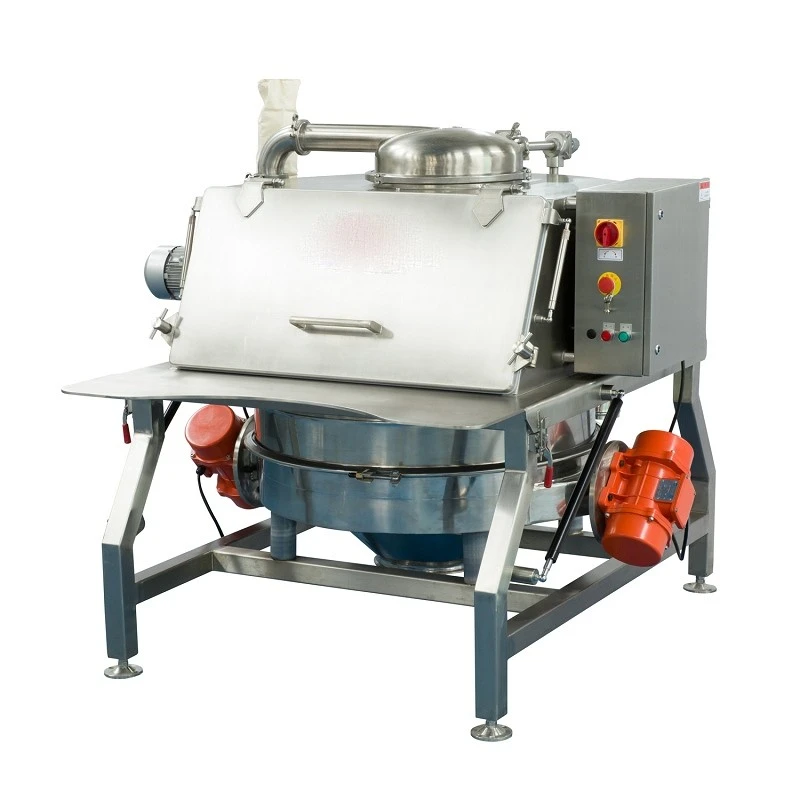

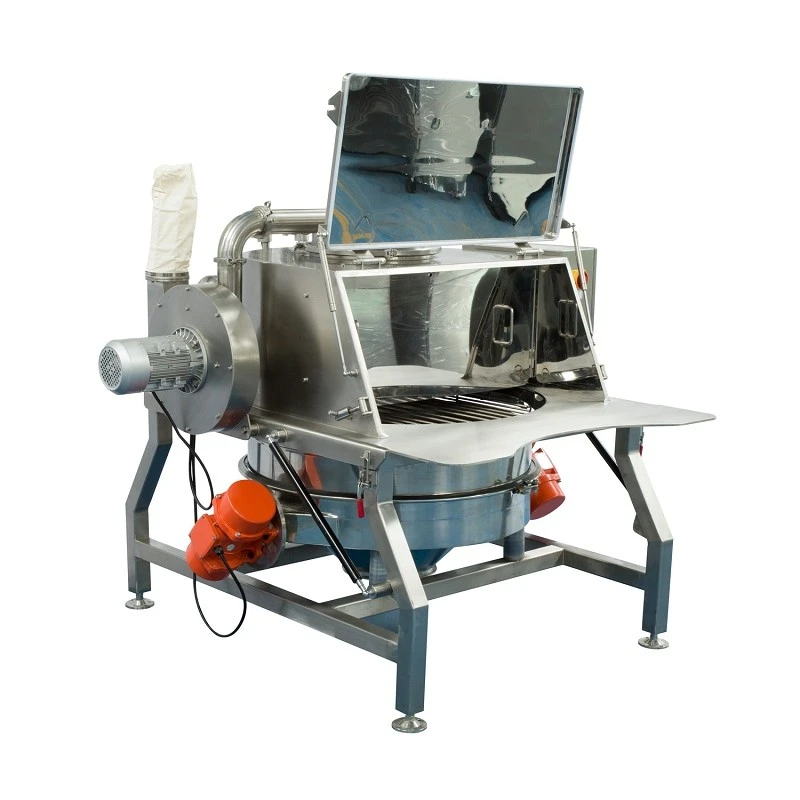

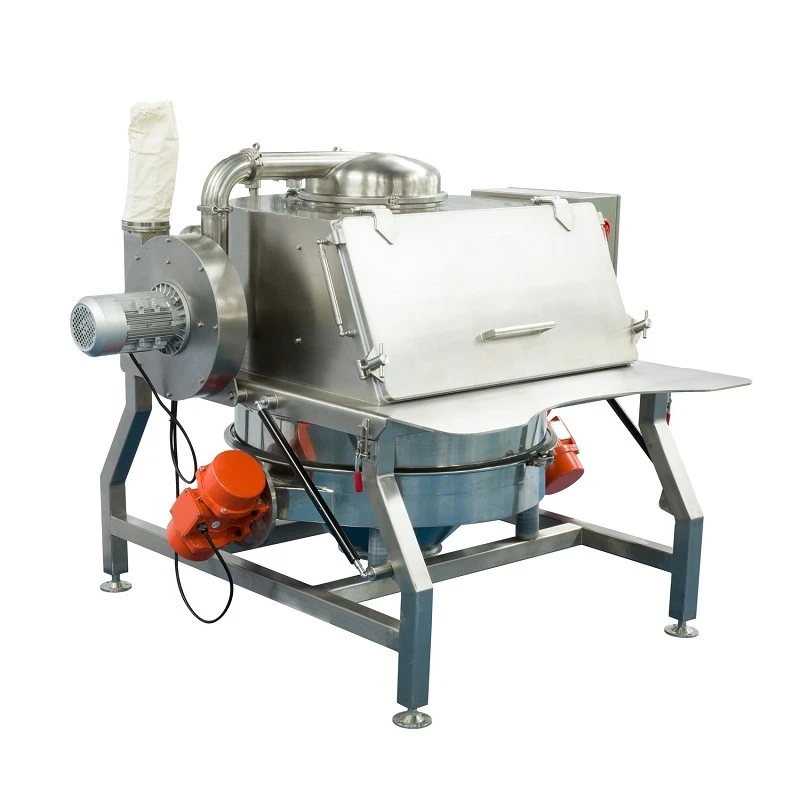

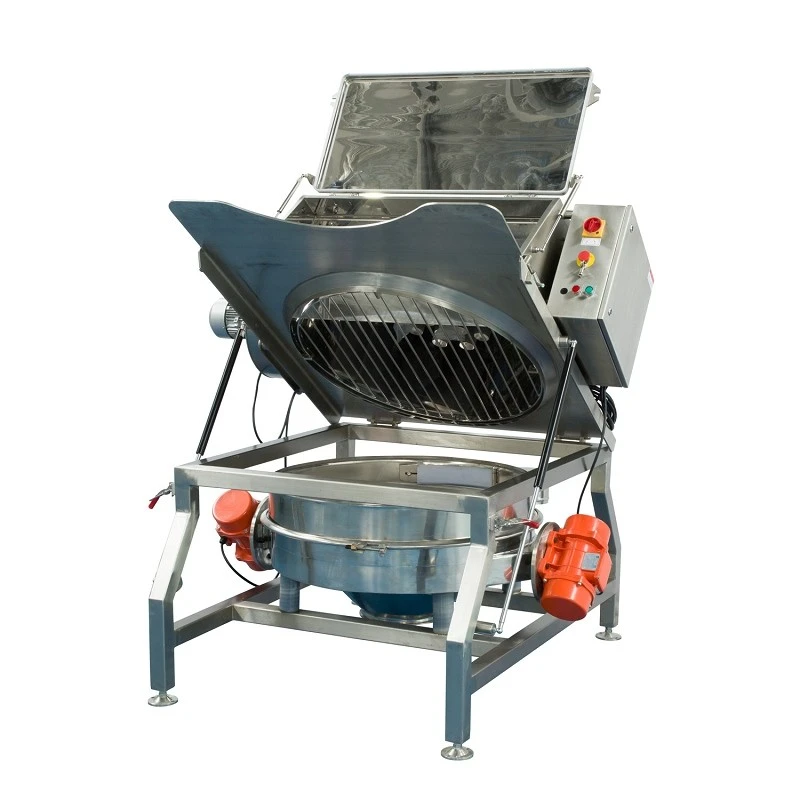

Side unloading vibratory feeder is one integrated equipment, mainly including: upper feeding dustproof bin, circular vibrating hopper, vibration silicon balls and sealing parts, vibration excitation assembly, lateral discharge interface, shock-absorbing support, hanging assembly, dust removal interface, inspection door and frame base. Compared with single-machine feeders, the feeding station is a complete unit with its own dust prevention, dust collection and protection structures, it can be feeding manually or by ton bags or small bags.
Reference technical parameters
|
Product name |
Vibration feeder/conveyor/feeding machine |
||
|
Model number |
TDT-800 |
TDT-1000 |
TDT-1200 |
|
Processing air volume |
300m³/h |
500 m³/h |
800 m³/h |
|
Filtering accuracy |
0.3-20um |
0.3-20um |
0.3-20um |
|
Motor rotation speed |
2800rpm |
2800rpm |
2800rpm |
|
Total weight |
660kg |
960kg |
1480kg |
|
Total power |
1.2kw |
1.6kw |
2.3kw |
|
Total length(L) |
1550 |
1800 |
2000 |
|
Total width(W) |
1400 |
1550 |
2000 |
|
Total height(H) |
1500 |
1500 |
1800 |
|
Power supply |
3P AC208-415V 50/60Hz |
||
Key characteristics
(1). Flexible lateral discharge layout:
It does not require vertical downward discharge and can be laterally connected to circular vibrating screens, conveyors, silos, and packaging equipment. It is suitable for the narrow space of the factory and the staggered arrangement of pipelines. It can be selected for single-sided and double-sided discharge.
(2). Good effect in preventing and blocking material discharge:
The circular hopper + central screen with vibration balls significantly improves the poor flowability of ultrafine powder and easily agglomerated powder, reducing blockage and deflection.
(3). Closed dust removal for environmental protection:
The overall closed feeding cavity can be equipped with a cloth bag dust removal interface, the feeding dust is collected centrally to meet the requirements of environmental protection dust control.
(4). Controllable quantitative feeding:
The feeding flow rate is linearly adjustable, suitable for continuous batching and pre-feeding screening, and the metering is uniform and stable.
(5). Material optional and easy cleaning:
The contact material parts can be made from stainless steel 304 or 316, which has no dead corners and is easy to change or cleaning. It is suitable for industries such as food, chemical industry, building materials and lithium battery powder etc.
Running principle
The materials after manual or unpacking fall into the circular hopper in the station. The vibration mechanism drives the hopper to vibrate in a circular trajectory, the internal conical surface breaks the powder arching, bridge building and wall blocking. The materials flow circumferentially along the inner wall of the hopper and are transported outward at a uniform speed from the side discharge port. By adjusting the vibration amplitude or variable frequency control, continuous quantitative feeding is achieved, Start or Stop are fast and the material is stable.
Product details
(1). Application fields: food plants, cosmetic industry, agriculture, chemical, lithium battery etc.
(2). Certifications: ISO9001 quality management system, CE, SGS testing reports; High-tech enterprise certification etc.
(3). Price: Negotiable, bulk order discounts available.
(4). Materials: Stainless steel 304/316/316L (standard), customizable materials supported.
(5). Power supply: Customized according to local power grid requirements.
(6). Delivery: Determined by purchase order terms, fast delivery for urgent orders.
(7). Packaging: Reinforced export wooden cases or pallets to ensure transportation safety.
(8). Warranty: 12 months from the date of delivery; free replacement for defective parts (non-human damage).
Firm advantages
Factory direct selling
We are a professional manufacturer of stainless steel fabricated products, selling directly to customers to ensure cost-effectiveness and product traceability.
Diverse product categories
Our product line has many across multiple series, focusing on dumping, mixing, conveying and packing. We provide a wide range of options to meet different needs.
Personalized Customization
We offer customized services according to customer requirements, adjusting product design and parameters to fully meet your production and use needs.
Continuous R&D investment
To expand the international market, we focus on network construction and service improvement, while continuously developing new products to enhance market competitiveness.
Integrity management concept
We have built long-term and stable cooperative relations with many enterprises. Our integrity management has earned a good reputation among customers worldwide.
Competitive pricing
We adhere to the principle of small profits for selling, with strong strength, good credit, contract compliance and guaranteed product quality. Welcome customers at home and abroad to consult and negotiate.
Main production process
- Raw material preparation as per production specifications.
- Laser cutting in strict accordance with drawing requirements.
- Material inspection prior to production commencement.
- Processing stage: double-check welding and polishing procedures.
- Quality check during the production process.
- Careful assembly of finished components.
- Double inspection after production completion.
- Run and test products using relevant raw materials.
- Clean, package following export-grade standards.
- Wait for delivery arrangement.
Technology specifics
- Our enterprise prioritizes innovative research, owning multiple patented technologies acquired in recent operating years.
- Brand-new structural designs can be independently developed upon receiving specific application demands from partners.
- We possess distinctive technological edges in quality monitoring, particularly for food-safe stainless steel productions.
- All technological breakthroughs center on enhancing product quality and fulfilling every client's customized demands.
- We introduce top-tier processing facilities to manufacture products with reliable and outstanding quality.
Our services cover following
- Rich experience in OEM cooperation with various clients.
- 2Customized design and project development based on customer needs.
- Professional technical guidance for product assembly.
- Diverse product range with fast delivery service.
- Advanced production facilities and mature manufacturing techniques.
- Factory-direct competitive pricing paired with premium service.
- Strict quality control with professional testing devices, 100% inspection for key parts.
- Efficient after-sales team to address usage and quality problems promptly.
- Flexible MOQ policy, suitable for small trial orders and large bulk orders.
- Customized packaging solutions to prevent damage in long-distance shipping.
Quality measurement system
There are our quality control measures:
Incoming raw material inspection
Verify material specifications and quality against standards before production.
Pre-assembly check
Inspect each component individually to ensure it meets assembly requirements.
In-process inspection
Monitor key production steps and check products one by one to control quality.
Pre-delivery sampling
Conduct random inspection of finished products to guarantee overall quality.
Relative Certifications
National High-Tech Enterprise accreditation has been awarded to Shanghai Tandy machinery. Our firm completed full ISO system registration and each export commodity comes with authentic CE credentials. We stick to standardized production guidelines alongside tight quality control processes. Relying on compliant, high-quality merchandise, we continuously deliver trustworthy supplies to massive overseas partners across diverse regions.
Our company
We are a professional machinery manufacturer focusing on custom food-safe stainless steel machinery. Our product portfolio covers food processing, packaging, material conveying and unloading devices. Equipped with in-house R&D labs and full production workshops, our factory sits in a transport-friendly zone with yearly capacity growth. We sincerely invite global new and long-term partners to come for factory tours, technical exchanges and win-win business negotiations.
Company exhibitions
Tandy Machinery consistently participates in high-profile industrial events covering PROPAK and FIC to boost overseas marketing. At each booth, our staff engages in one-on-one discussions with industry purchasers, showcases complete product lines and custom fabrication support, and records real-time market input from cross-border customers. These offline communications strengthen brand influence, tap new partnership chances, and bring solid achievements in global business development.
Enterprise culture activity
Our workforce keeps growing steadily alongside the company's sustainable annual growth. Apart from broadening overseas and domestic business layouts, we prioritize building a cohesive, skilled team. We launch diverse training systems to polish all staff's technical expertise for food machinery manufacturing. We pursue mutual advancement, supporting every employee to lift their professional strengths and align personal career advancement with the enterprise's long-term growth goals.
Packaging & delivery
We offer a variety of logistics solutions, allowing clients to select the optimal shipping mode according to their real demands.
Railway transport
Pros are a relatively fast transit time (10-15 days approximately) and available door-to-door delivery. The main con is that it is more costly than sea freight.
Air freight
It delivers ultra-efficient shipment, with a transit time of just 3-7 days, which is quicker than railway transport. However, customers must arrange to pick up the goods at the airport after arrival.
Sea freight
It is the most budget-saving solution, with much higher cost performance than air freight and express couriers. The downside is a longer shipping cycle, and buyers are required to collect the cargo personally at the destination port.
FAQ
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, design, dimension can be customized, The basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: Do you have the products in stock?
A: All equipment are to be produced according to your order details. Some standard machines are inventory sometimes.
Q: Can I mix different models in one time?
A: Yes, different models can be mixed in one time, you can choose few quantity to test first.
Q: What's your warranty terms?
A: There are different warranty time for different products. Please contact with us for detailed warranty terms if you are interested in.
Q: How about the after-sale service?
A: We provide 12 months quality warranty after dispatch, some free easy abrasion spares of machine, we also provide long time free technical advisory services and technical consulating services.
